Product Overview

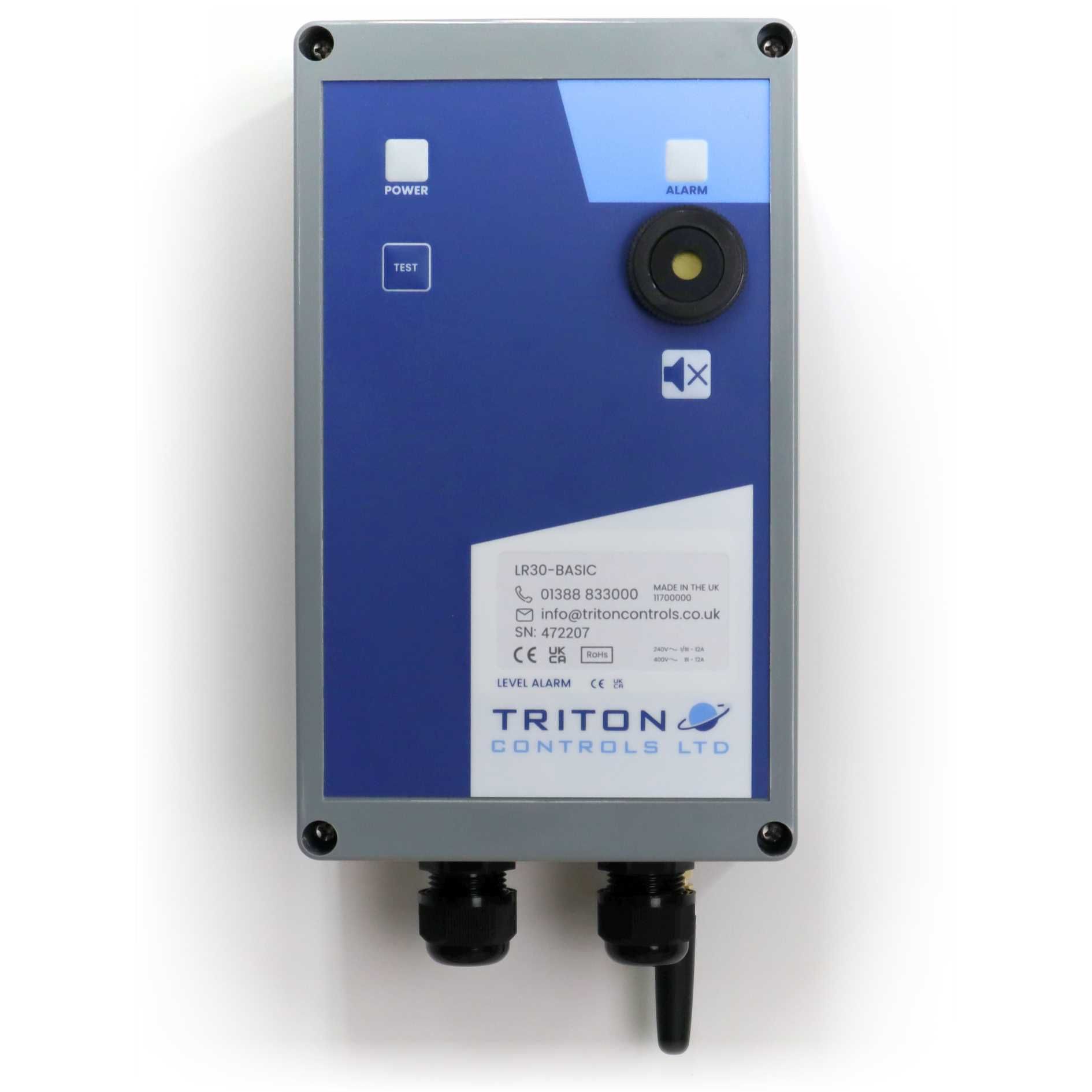

The LR30-BASIC is Triton Controls' most economic alarm with inbuilt SMS texting technology. The alarm panel is simple to install and is designed to alert to high or low levels in tanks when connected to a float switch.
As standard, the alarm comes with both a volt-free output and an auxiliary alarm output capable of powering a beacon or other external circuitry.

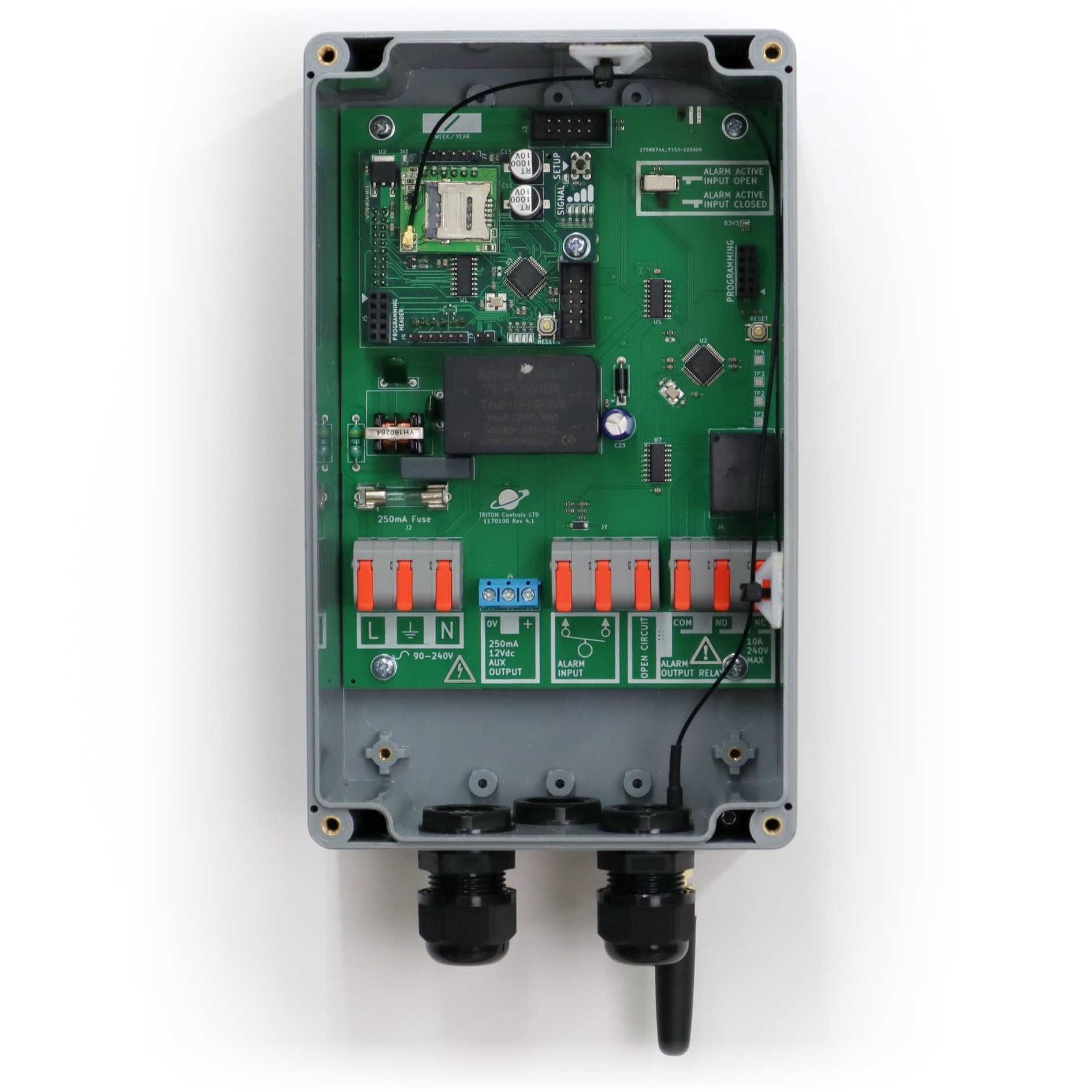

The Alarm is housed in an easy-to-install IP65-rated enclosure with fast-connect connectors allowing for a simple and speedy installation.
The alarm panel can be triggered either active open or active closed making it suitable for all requirements.
High-Level Alarm Applications
- High/low-level alarm
- High/low pressure
- Intruder alarm
High Level Alarm Product Features
- Simple to install
- Low cost
- Waterproof IP65 enclosure
- 103dB audio alarm
- Visual high-level alarm
- Visual power outage alarm
- Volt Free remote alarm output relay
- Auxilary 12Vdc output which can be connected to accessories such as the LRAC-0003 alarm beacon
- 110-240Vac
- GSM telemetry
Datasheet
Download Data Sheet LR30-BASIC
Download Manual LR30-GSM-MODULE
Download the Installation App
Android
iOS (coming soon)
