Backup Battery High Level Alarm with GSM

Tap for gallery


Product Information

Product Overview

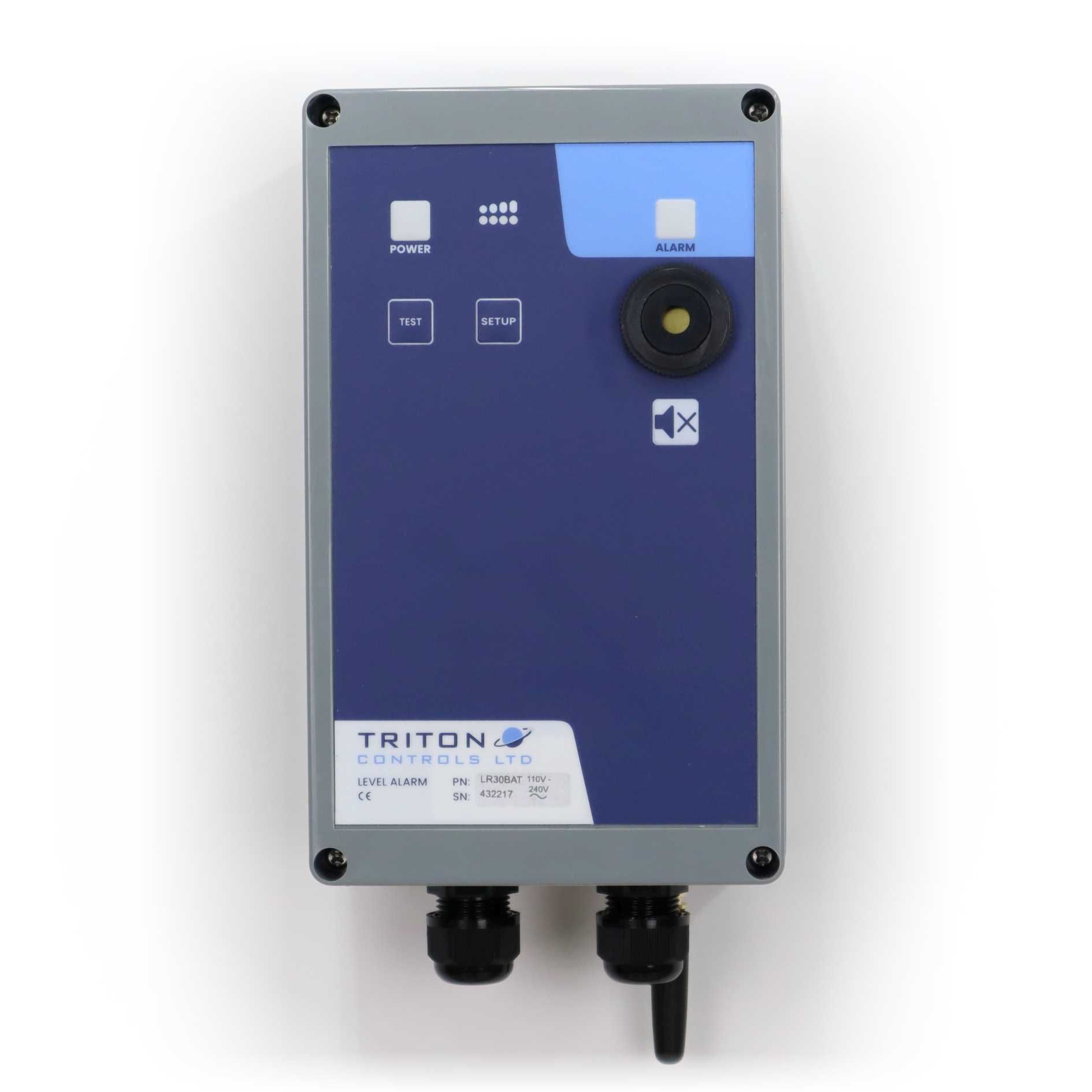

The LR30-BATTERY-GSM is a backup battery alarm capable of over 48h of operating time for use during power outages and SMS texting technology. The alarm panel is simple to install and is designed to alert to high or low levels in tanks when connected to a float switch.

As standard, the alarm comes with both a volt-free output and an auxiliary alarm output capable of powering a beacon or other external circuitry.

The Alarm is housed in an easy-to-install IP65-rated enclosure with fast-connect connectors allowing for a simple and speedy installation.

The alarm panel can be triggered either active open or active closed making it suitable for all requirements.

High-Level Alarm Applications

  • Remote alerting
  • High/low-level alarm
  • High/low pressure
  • Intruder alarm

High Level Alarm Product Features

  • Available with 240Vac or 24Vac input voltages
  • Simple to install
  • Low cost
  • Waterproof IP65 enclosure
  • 103dB audio alarm
  • Visual high-level alarm
  • Visual power outage alarm
  • Volt Free remote alarm output relay
  • Auxilary 12Vdc output which can be connected to accessories such as the LRAC-0003 alarm beacon
  • 110-240Vac
  • Backup battery


Download Data Sheet LR30-BATTERY
Download Manual LR30-GSM-MODULE

Download the Installation App

iOS (coming soon)

Product CodeLR30-BATTERY-GSM
ManufacturerTriton Controls
